Medium temperature: ≤150 ℃
Operation method: manual
Medium: water
Caliber: DN32-300
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: flange

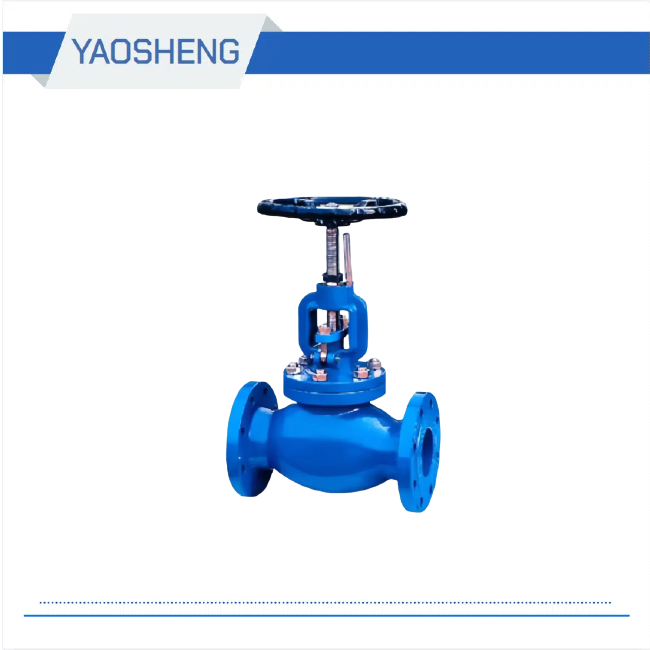

T40F-16/16Q Cast Iron Adjustable Valve Material of main parts | |||
Part Name | material | ||
Valve body | grey cast iron | ||
Valve stem | Carbon steel, stainless steel | ||
filler | Flexible graphite | ||
Stem nut | brass |
Application: This valve is mainly used in urban central heating and circulating water projects. The role of specific cut-off, throttling and regulating flow.
Performance Specification of Control Valve T40F | |||||||
model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
Strength (water) | Sealed (water) | ||||||
T40F-16 | 1.60 | 2.40 | 1.76 | —10 ~ 150 ℃ | Water and oil |
Control valve T40F appearance size and connection size | |||||||
model | Nominal diameter (mm) | Size (mm) | |||||
L | D | D1 | D2 | bf | N-φd | ||
T40F-16 | 32 | 180 | 140 | 100 | 78 | 18-2 | 4-19 |
40 | 200 | 150 | 110 | 85 | 18-3 | 4-19 | |
50 | 230 | 165 | 125 | 100 | 20-3 | 4-19 | |
65 | 290 | 185 | 145 | 120 | 20-3 | 4-19 | |
80 | 310 | 200 | 160 | 135 | 22-3 | 8-19 | |
100 | 350 | 220 | 180 | 155 | 24-3 | 8-19 | |
125 | 400 | 250 | 210 | 185 | 26-3 | 8-19 | |
150 | 480 | 285 | 240 | 210 | 28-3 | 8-23 | |
200 | 600 | 340 | 295 | 265 | 30-3 | 12-23 | |
250 | 730 | 405 | 355 | 320 | 32-3 | 12-28 | |
300 | 850 | 460 | 410 | 375 | 34-4 | 12-28 |
