Medium temperature: -29-200 ℃
Medium: water, steam, oil, etc.
Caliber: DN50-DN400
Pressure: 1.6-4.0MPA
Body material: WCB
Connection method: flange
Mode of operation: turbine, pneumatic, electric
Design Standard: National Standard

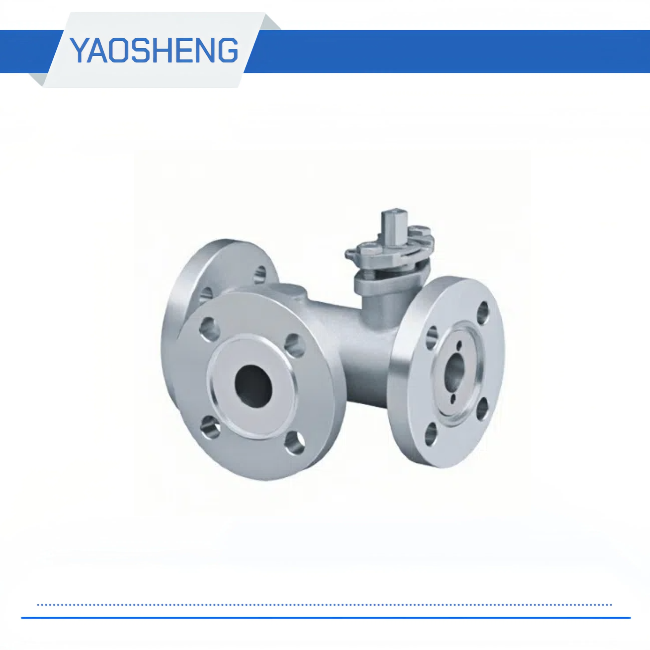

Q44 / 45F-16P flange type three-way ball valve Material of main parts | |||
Part Name | material | ||
Valve body | CF8 / CF8M | ||
Sphere | CF8 / CF8M | ||
Valve stem | F304 / F316 | ||
Gasket | PTFE | ||
Sealing ring | PTFE |
Application: This valve is suitable for pipelines of non-corrosive media such as water, steam and oil.
Flanged three-way ball valve Q44 / 45F performance specifications | |||||||
model | Nominal pressure (MPA) | Test pressure (mpa) water | proper temperature | Applicable medium | |||
strength | seal | ||||||
Q44 / 45F-16P | 1.6 | 2.40 | 1.80 | ≤200 ℃ | Water, steam, oil, nitric acid, acetic acid, etc. | ||
Q44 / 45F-25P | 2.5 | 3.80 | 2.80 |
Flange type three-way ball valve Q44 / 45F | |||||||
model | Nominal diameter (mm) | Size (mm) | |||||
L | D | D1 | D2 | b | z-φd | ||
Q44 / 45F-16P | 15 | 150 | 95 | 65 | 45 | 14 | 4 * φ14 |
20 | 160 | 105 | 75 | 55 | 14 | 4 * φ14 | |
25 | 180 | 115 | 85 | 65 | 14 | 4 * φ14 | |
32 | 200 | 135 | 100 | 78 | 16 | 4 * φ18 | |
40 | 220 | 145 | 110 | 85 | 16 | 4 * φ18 | |
50 | 240 | 160 | 125 | 100 | 16 | 4 * φ18 | |
65 | 260 | 180 | 145 | 120 | 18 | 4 * φ18 | |
80 | 280 | 195 | 160 | 135 | 20 | 8 * φ18 | |
100 | 320 | 215 | 180 | 155 | 20 | 8 * φ18 | |
125 | 380 | 245 | 210 | 185 | twenty two | 8 * φ18 | |
150 | 440 | 280 | 240 | 210 | twenty four | 8 * φ23 | |
200 | 550 | 335 | 295 | 265 | 26 | 12 * φ23 | |
Q44 / 45F-25 | 15 | 150 | 95 | 65 | 45 | 16 | 4 * φ14 |
20 | 160 | 105 | 75 | 55 | 16 | 4 * φ14 | |
25 | 180 | 115 | 85 | 65 | 16 | 4 * φ14 | |
32 | 200 | 135 | 100 | 78 | 18 | 4 * φ18 | |
40 | 220 | 145 | 110 | 85 | 18 | 4 * φ18 | |
50 | 240 | 160 | 125 | 100 | 20 | 4 * φ18 | |
65 | 260 | 180 | 145 | 120 | twenty two | 8 * φ18 | |
80 | 280 | 195 | 160 | 135 | twenty two | 8 * φ18 | |
100 | 320 | 230 | 190 | 160 | twenty four | 8 * φ23 | |
125 | 380 | 270 | 220 | 188 | 28 | 8 * φ25 | |
150 | 440 | 300 | 250 | 218 | 30 | 8 * φ25 | |
200 | 550 | 360 | 310 | 278 | 34 | 12 * φ25 |
