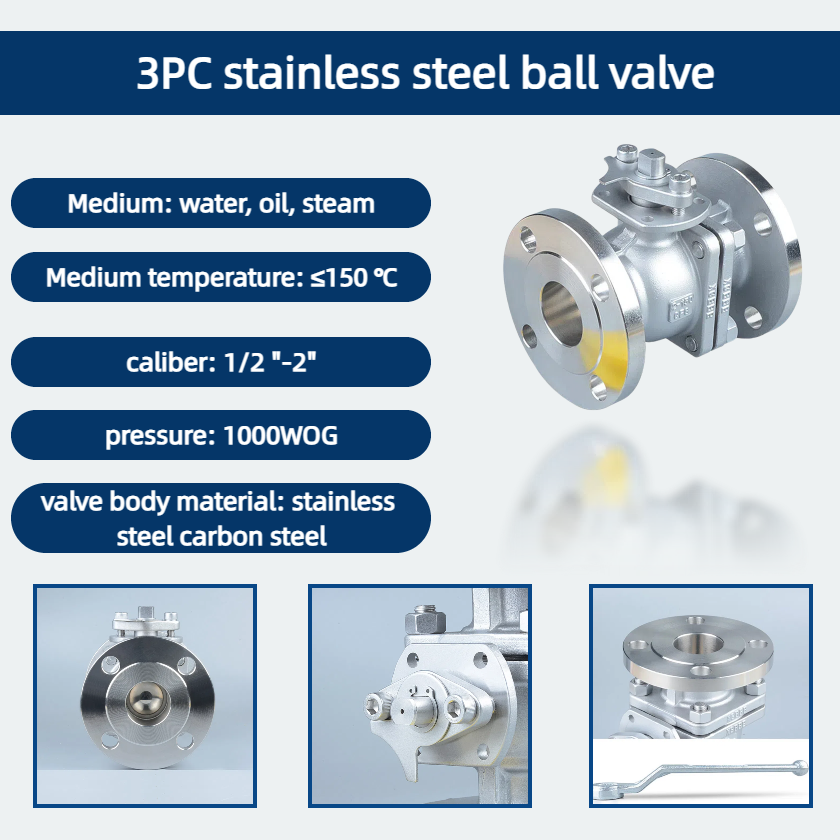

Medium temperature: ≤150 ℃
Medium: water, oil, steam
caliber: 1/2 "-2"
pressure: 1000WOG
valve body material: stainless steel carbon steel
connection method: NPT BSP thread
3PC ball valve-1000WOG main parts material | |||
Part Name | material | ||
Valve body | CF8 CF8M WCB | ||
ball | SS304 SS316 | ||
Valve seat | PTFE | ||
Valve stem | SS304 SS316 |
3PC Ball Valve-1000WOG Performance Specification | |||||||||
model | Nominal pressure (WOG) | test pressure | proper temperature | Applicable medium | |||||
Strength (water) | Sealed (water) | ||||||||
3PC-1000WOG | 1000.0 | API598 JB / T9092 | ≤150 ℃ | Water, oil, steam |
3PC Ball Valve-1000WOG Dimensions and Connection Dimensions | |||||||||
SIZE | 1/2 " | 3/4 " | 1" | 1 1/4 " | 2" | ||||
d | 15 | 20 | 25 | 32 | 50 | ||||
L | 69 | 79 | 89 | 104 | 133 | ||||
H | 44 | 47.4 | 55 | 62 | 81 | ||||
H1 | 9 | 9 | 13 | 13 | 16 | ||||
E | 104 | 113 | 135 | 145 | 182 |
