Medium temperature: ≤250 ℃
Medium: steam, water, oil
Caliber: DN20-200
Pressure: 1.6mpa
Body material: gray cast iron, nodular cast iron
Connection method: flange

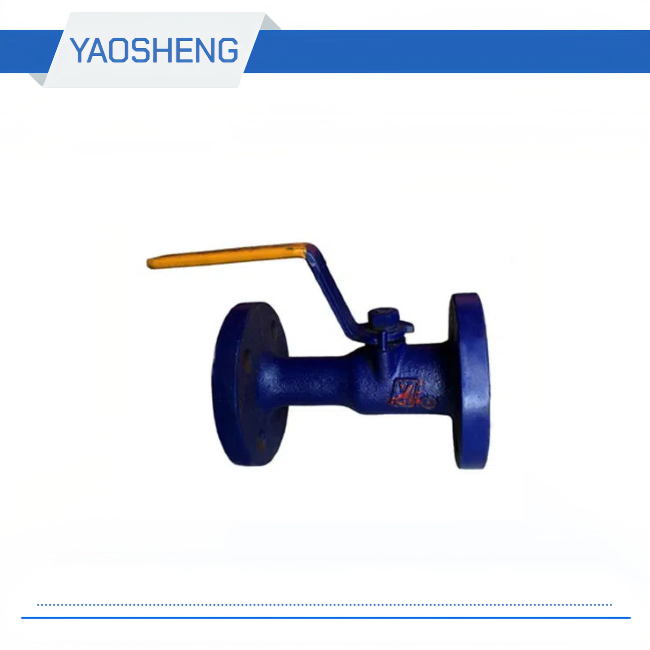

QJ41M-16 Cast Iron High Temperature Ball Valve Material of main parts | |||
Part Name | material | ||
Valve body | Gray cast iron, ductile cast iron | ||
Sphere | Grey iron, stainless steel | ||
Valve stem | Carbon steel, stainless steel | ||
Sealing ring | PTFE + carbon fiber |
Application: This valve is mainly used for opening and closing on the pipeline. Its biggest advantage is that it opens and closes quickly.
Performance specifications of cast iron high temperature ball valve QJ41M-16 | |||||||
model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
Strength (water) | Sealed (water) | ||||||
QJ41M-16 | 1.60 | 2.40 | 1.76 | ≤250 ℃ | Steam, water, oil |
Cast iron high temperature ball valve QJ41M-16 overall dimensions and connection dimensions | |||||||
model | Nominal diameter (mm) | Size (mm) | |||||
L | D | D1 | D2 | bf | Z-φd | ||
QJ41M-16 | 20 | 150 | 105 | 75 | 56 | 16-2 | 4-14 |
25 | 160 | 115 | 85 | 65 | 16-3 | 4-14 | |
32 | 180 | 140 | 100 | 78 | 18-3 | 4-19 | |
40 | 200 | 150 | 110 | 84 | 18-3 | 4-19 | |
50 | 230 | 165 | 125 | 99 | 20-3 | 4-19 | |
65 | 290 | 185 | 145 | 118 | 20-3 | 4-19 | |
80 | 310 | 200 | 160 | 132 | 22-3 | 8-19 | |
100 | 350 | 220 | 180 | 156 | 24-3 | 8-19 | |
125 | 400 | 250 | 210 | 184 | 26-3 | 8-19 | |
150 | 480 | 285 | 240 | 211 | 26-3 | 8-23 | |
200 | 600 | 340 | 295 | 266 | 30-3 | 12-23 |
