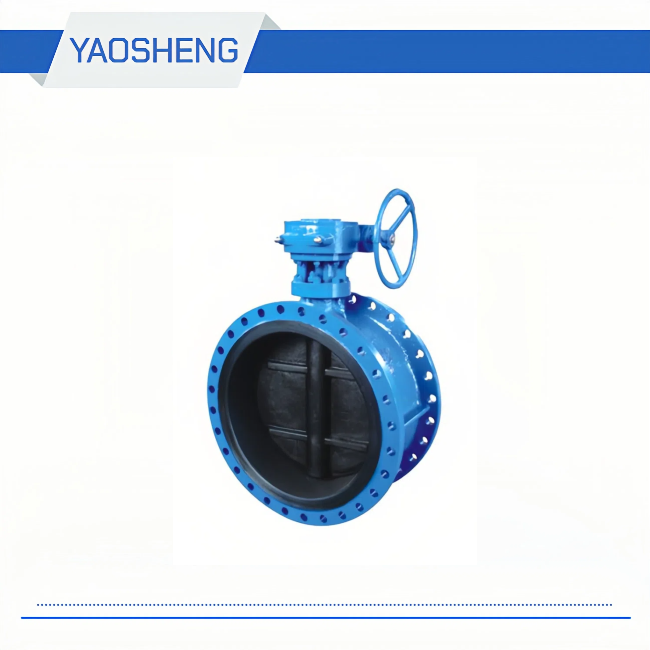

D341J-16 Rubber-lined Flange Butterfly Valve

Medium temperature: -10-80 ℃
Medium: water, oil, gas
caliber: DN50-1000mm
pressure: 1.0-1.6mpa
body material: ductile iron, carbon steel, stainless steel
connection method: flange

Inquire Now Next Product

Product Details

D341J-16 Rubber-lined Flange Butterfly Valve Material of main parts
Part Name	material
Valve body	Ductile iron, carbon steel, stainless steel
Disc	Ductile iron, carbon steel, stainless steel
Valve stem	Stainless steel, carbon steel
Sealing ring	EPDM, PTFE, VITION

Application: This valve is used for opening and closing or regulating the flow of medium in the pipeline.

D341J-16 Rubber-lined Flange Butterfly Valve

Performance Specification for Rubber-lined Flange Butterfly Valve D341J
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
D341J-10	1.0	1.50	1.10	—10—80 ℃	Water, oil, gas
D341J-16	1.6	2.40	1.76

Dimensions and connection dimensions of rubber-lined flange butterfly valve D341J
model	Nominal diameter (mm)	L	D D1		D1		n-d0
model	Nominal diameter (mm)	L	PN10	PN16	PN10	PN16	PN10	PN16
D341J-10 / 16	50	108	165	165	125	125	4 * φ18	4 * φ18
	65	112	185	185	145	145	4 * φ18	4 * φ18
	80	114	200	200	160	160	8 * φ18	8 * φ18
	100	127	220	220	180	180	8 * φ18	8 * φ18
	125	140	250	250	210	210	8 * φ18	8 * φ18
	150	140	285	285	240	240	8 * φ22	8 * φ22
	200	152	340	340	295	295	8 * φ22	12 * φ22
	250	165	395	405	350	355	12 * φ22	12 * φ26
	300	178	445	460	400	410	12 * φ22	12 * φ26
	350	190	505	520	460	470	16 * φ22	16 * φ26
	400	216	565	580	515	525	16 * φ26	16 * φ30
	450	222	615	640	565	585	20 * φ26	20 * φ30
	500	229	670	715	620	650	20 * φ26	20 * φ33
	600	267	780	840	725	770	20 * φ30	20 * φ36
