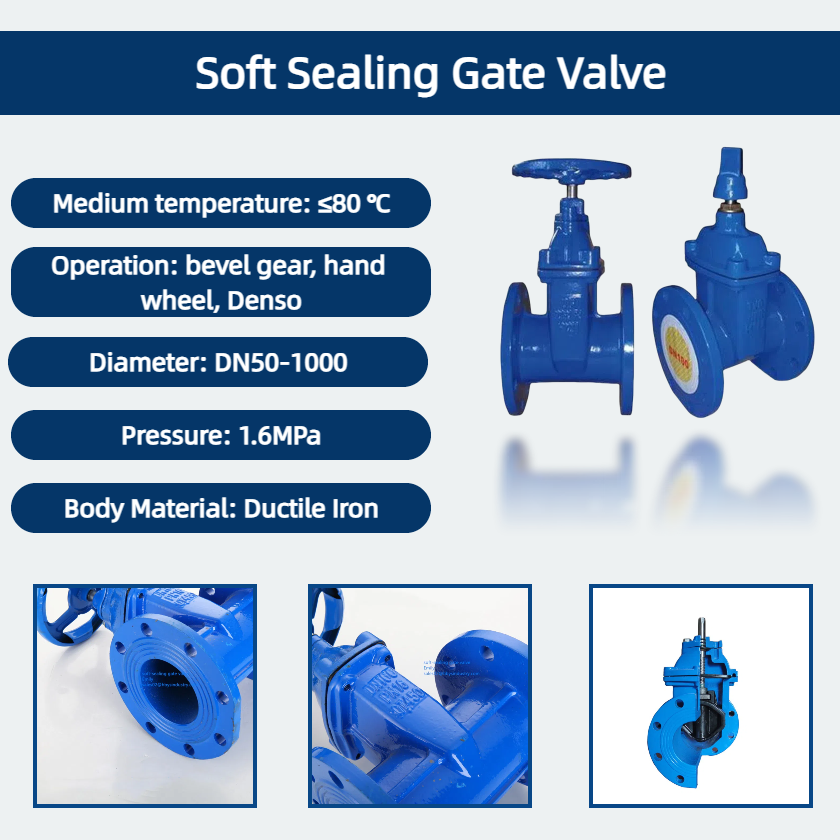

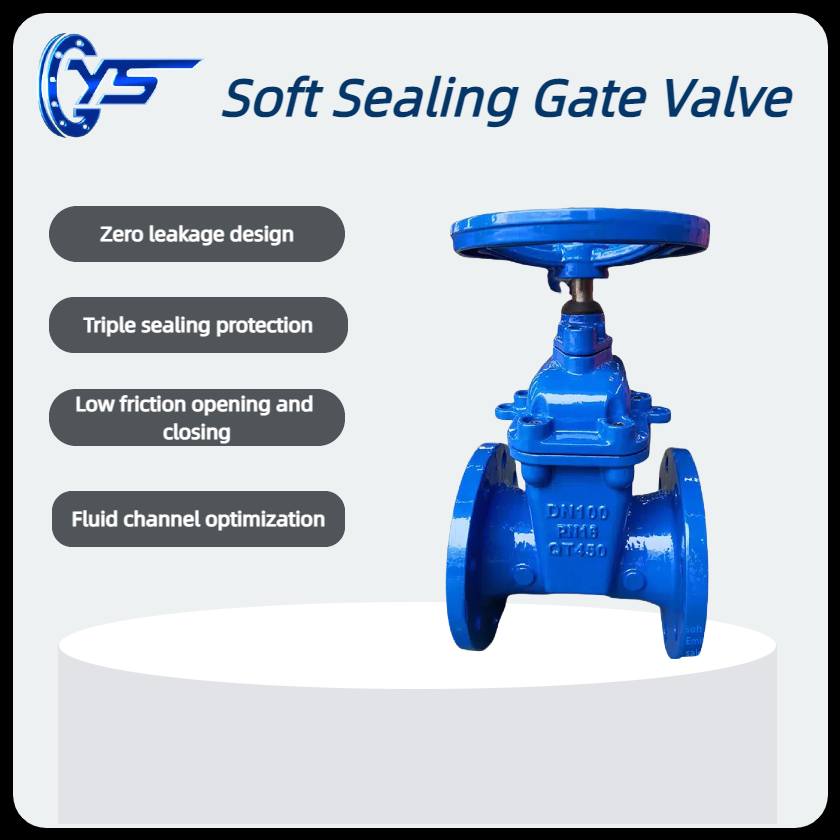

Medium temperature: ≤80 ℃
Operation: bevel gear, hand wheel, Denso
medium: water
Diameter: DN50-1000
Pressure: 1.6MPa
Body Material: Ductile Iron
Connection: flange
| Material of soft seal gate valve Z45 | |||
| Part Name | material | ||
| Body / bonnet | Ductile iron | ||
| gate | Ductile iron + EPDM | ||
| Valve stem | stainless steel | ||
| Stem nut | Brass / Ductile Iron | ||

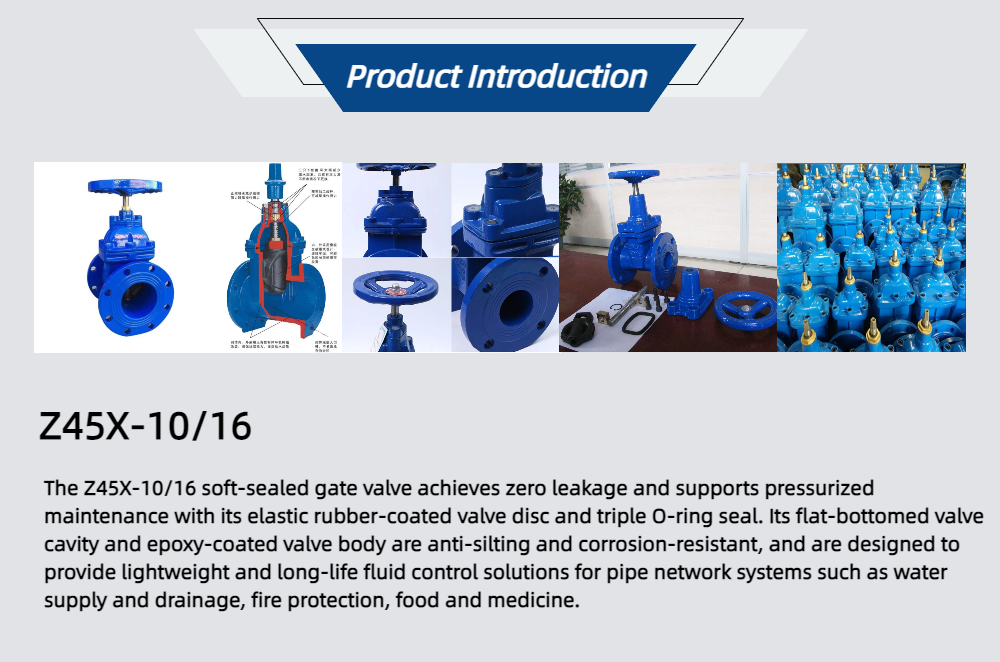

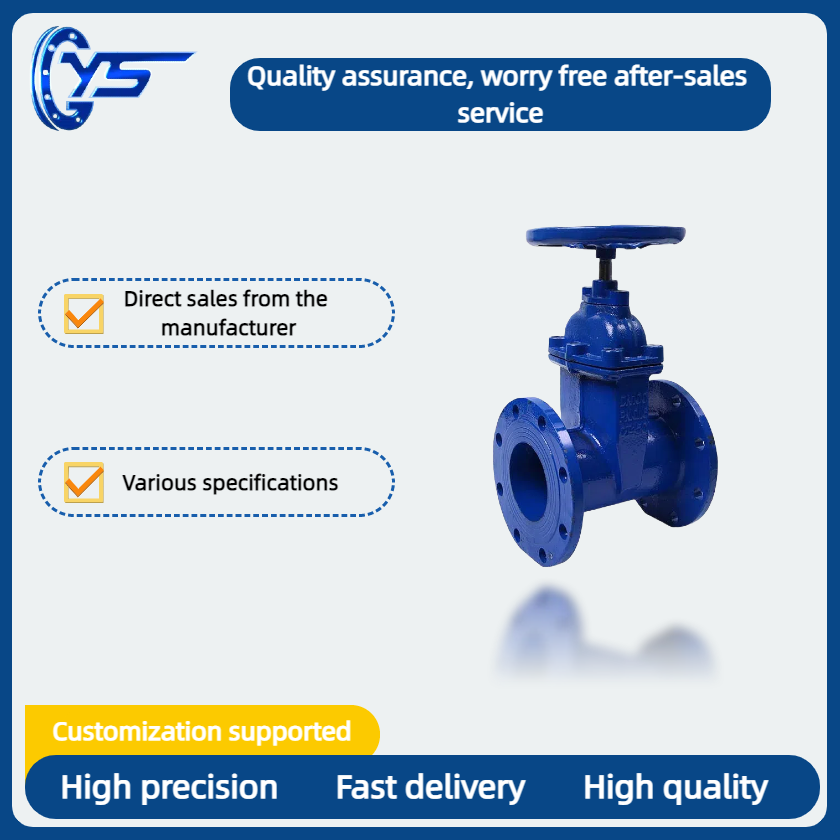

| Performance Specification for Soft Seal Gate Valve Z45X | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | Sealed (water) | ||||||
| Z45X-10 | 1.00 | 1.50 | 1.10 | ≤80 ℃ | water | ||
| Z45X-16 | 1.60 | 2.40 | 1.76 | ≤80 ℃ | water | ||
| Outer dimensions and connection dimensions of soft-sealed gate valve Z45X | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | D2 | b | z-φd | ||
| Z45X-10 / 16Q | 50 | 150 | 165 | 125 | 99 | 17 | 4 * φ19 |
| 65 | 170 | 185 | 145 | 118 | 17 | 4 * φ19 | |
| 80 | 180 | 200 | 160 | 132 | 17 | 8 * φ19 | |
| 100 | 190 | 220 | 180 | 156 | 18 | 8 * φ19 | |
| 125 | 200 | 250 | 210 | 184 | 19 | 8 * φ19 | |
| 150 | 210 | 285 | 240 | 211 | 19 | 8 * φ23 | |
| 200 | 230 | 340 | 295 | 266 | 19 | 8 * φ23 / 12 * φ23 | |
| 250 | 250 | 395/405 | 350/355 | 319 | 20 | 12 * φ23 / 12 * φ28 | |
| 300 | 270 | 445/460 | 400/410 | 370 | twenty two | 12 * φ23 / 12 * φ28 | |
| 350 | 290 | 520 | 460/470 | 430 | 28 | 16 * φ23 / 16 * φ26 | |
| 400 | 310 | 582 | 515/525 | 475 | 28 | 16 * φ25 / 16 * φ30 | |
| 450 | 330 | 615/640 | 565/585 | 565/585 | 32 | 20 * φ26 / 20 * φ30 | |
| 500 | 350 | 670/715 | 620/650 | 580 | 32 | 20 * φ26 / 20 * φ30 | |
| 600 | 390 | 780/840 | 725/770 | 680 | 38 | 20 * φ30 / 20 * φ36 | |
