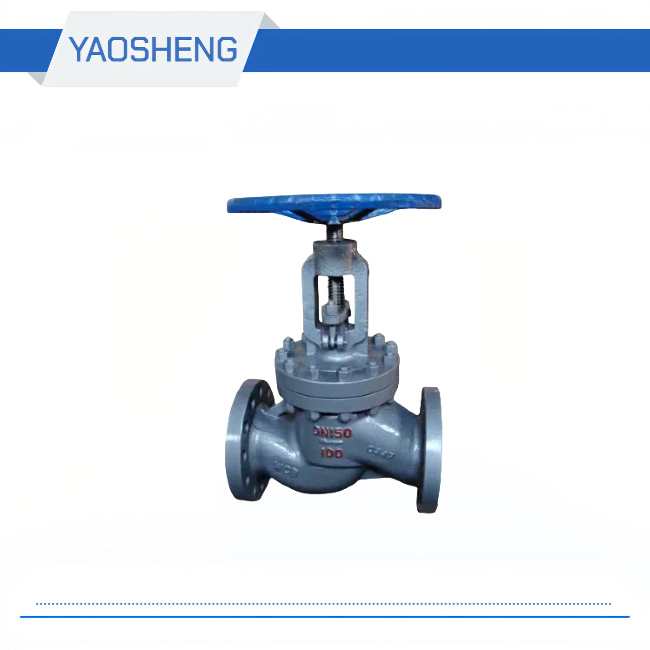

DN 15-250mm Cast Steel Globe Valve

Medium temperature: ≤425 ℃
Operating mode: manual / electric
medium: water, oil, steam, etc.
Caliber: DN50-1000
Pressure: 1.6-16.0mpa
Body material: WCB
Connection method: flange

Inquire Now Next Product

Product Details

Cast Steel Globe Valve Material of main parts of cast steel globe valve
Part Name		material
Body / bonnet		WCB
gate		WCB
Valve stem		WCB / 2cr13
Stem nut		Ductile iron / brass

J41H / Y-16C / 25/40/64/100 cast steel globe valve

Cast Steel Globe Valve Performance specifications of cast steel globe valve
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
J41 / 941H / Y-16C	1.6	2.40	1.80	—29—425 ° C	Water, steam, oil, etc.
J41 / 941H / Y-25C	2.5	3.80	2.80
J41 / 941H / Y-40C	4.0	6.15	4.51
J41 / 941H / Y-64C	6.4	9.75	7.15

External dimensions and connection dimensions of cast steel globe valve
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	D	D1	D2	bf	z-φd	H1
J41 / 941H / Y-16C	15	130	95	65	45	14-2	4 * φ14	205
	20	150	105	75	55	14-2	4 * φ14	211
	25	160	115	85	65	14-2	4 * φ14	223
	32	180	135	100	78	16-2	4 * φ18	250
	40	200	145	110	85	16-3	4 * φ18	288
	50	230	160	125	100	16-3	4 * φ18	321
	65	290	180	145	120	18-3	4 * φ18	341
	80	310	195	160	135	20-3	8 * φ18	385
	100	350	215	180	155	20-3	8 * φ18	437
	125	400	245	210	185	22-3	8 * φ18	471
	150	480	280	240	210	24-3	8 * φ23	516
	200	600	335	295	265	26-3	12 * φ23	610

Tips:

Compact structure, reasonable design, good valve rigidity, smooth passage.

2.The use of flexible graphite packing, reliable sealing, light and flexible operation

Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.

Product Advantages:

We have Sand or Precision casting technology,So we can as your drawing design and production.
Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding.

6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7.The kind valve we usually use Pallets to package, We also can according to specific customer's requests.
