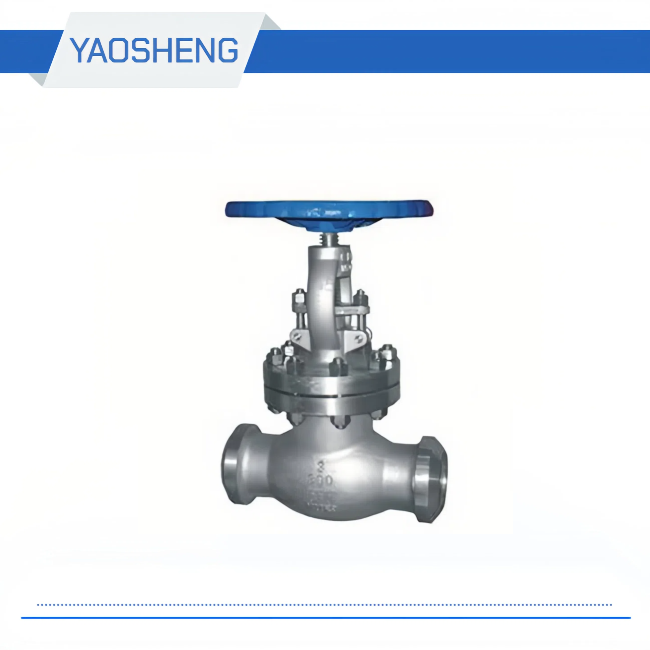

Medium: Liquid oxygen such as liquid oxygen, liquid nitrogen, carbon dioxide
Operation method: manual
Caliber: DJ-10A- DJ-50K
Pressure: 4.0mpa
Body material: low temperature steel
Connection method: welding
| Low Temperature steel Welding Globe Valve Material of main parts | ||
| Part Name | material | |
| Body / bonnet | LCB, LC1, LC2 | |
| Valve stem | F431, F304, F304L | |
| Low-temperature steel welded globe valve DJ41F external dimensions and connection dimensions | |||||||
| model | Model TYPE | Size (mm) | |||||
| L | D1 | D2 | D0 | B | D | ||
| DJ41F-16 | DJ-10A | 60 | 13 | 17 | 13 | 16 | 4 |
| DJ-15A | 65 | 17.08 | 21.3 | 15 | 18 | 5 | |
| DJ-20A | 80 | 22.48 | 26.7 | 20 | 20 | 5 | |
| DJ-25A | 90 | 27.9 | 33.4 | 25 | 20 | 5 | |
| DJ-32A | 105 | 36 | 42.2 | 32 | twenty two | 5 | |
| DJ-40A | 120 | 43 | 48.3 | 40 | twenty four | 5 | |
| DJ-50A | 140 | 55 | 60.3 | 50 | 26 | 5 | |
| DJ-15K | 60 | 14 | 18 | 15 | 30 | 5 | |
