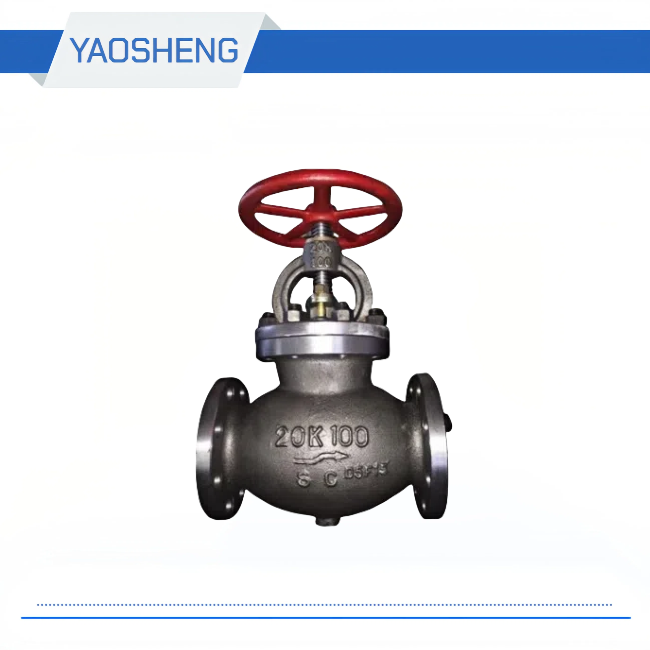

Medium: water, steam, oil, nitric acid, acetic acid, etc.
Operation method: manual
Caliber: DN50-200mm
Pressure: 10K-20K
Body material: carbon steel, stainless steel
Connection method: flange
| JIS Globe Valve Material of main parts | ||
| Part Name | material | |
| Body / bonnet | Cast steel, stainless steel | |
| Stem nut | brass | |
| Valve seat | stainless steel | |
| Valve stem | Carbon steel, stainless steel | |
| JIS globe valve J41H performance specification | |||||||||||||||
| Body material | SCPH2-11 | SCPH2-32 | SCS13A | SCS19A | SCS14A | SCS16A | SCPL1 | ||||||||
| proper temperature | ≤425 | ≤540 | ≤275 | ≤200 | ≤275 | ≤200 | ≤425 | ||||||||
| Applicable medium | Water, steam, oil | Nitric acid | Acetic acid | Ammonia gas liquid ammonia | |||||||||||
| JIS globe valve J41H overall dimensions and connection dimensions | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | D2 | b | nφTh | ||
| J41H-10K | 50 | 203 | 155 | 120 | 100 | 16 | 4-19 |
| 65 | 216 | 175 | 140 | 120 | 18 | 4-19 | |
| 80 | 241 | 185 | 150 | 130 | 18 | 8-19 | |
| 100 | 292 | 210 | 175 | 155 | 18 | 8-19 | |
| 125 | 356 | 250 | 210 | 185 | 20 | 8-23 | |
| 150 | 406 | 280 | 240 | 215 | twenty two | 8-23 | |
| 200 | 495 | 330 | 290 | 265 | twenty two | 12-23 | |
