Medium: sea water, fresh water, oil, fuel oil, steam
Operation method: manual
Caliber: DN50-300mm
Pressure: 0.6-1.6mpa
Body material: gray cast iron
Connection method: flange

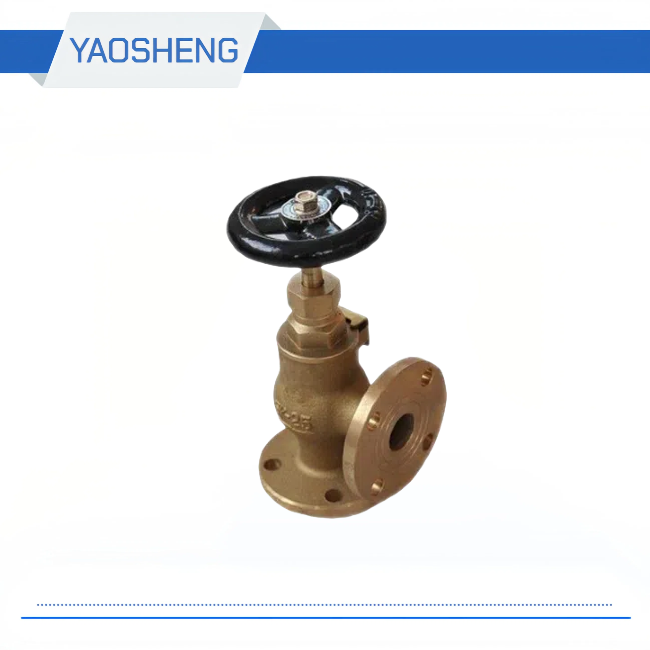

| JIS Marine Angle Globe Valve Material of main parts | ||
| Part Name | material | |
| Body / bonnet | grey cast iron | |
| Valve plate | Cast tin bronze | |
| Valve seat | Cast aluminum bronze | |
| Valve stem | Aluminum bronze | |
| Dimensions and Connection Dimensions of JIS Marine Angle Globe Valve | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | D2 | b | nφTh | ||
| PN0.6 | 50 | 125 | 140 | 110 | 90 | 16 | 4 * φM12 |
| 65 | 145 | 160 | 130 | 110 | 16 | 4 * φM12 | |
| 80 | 155 | 190 | 150 | 128 | 18 | 4 * φM16 | |
| 100 | 175 | 210 | 170 | 148 | 18 | 4 * φM16 | |
| 125 | 200 | 240 | 200 | 178 | 20 | 8 * φM16 | |
| 150 | 225 | 265 | 225 | 202 | 20 | 8 * φM16 | |
| 200 | 275 | 295 | 280 | 258 | twenty two | 8 * φM16 | |
| 250 | 325 | 375 | 335 | 312 | twenty four | 12 * φM16 | |
