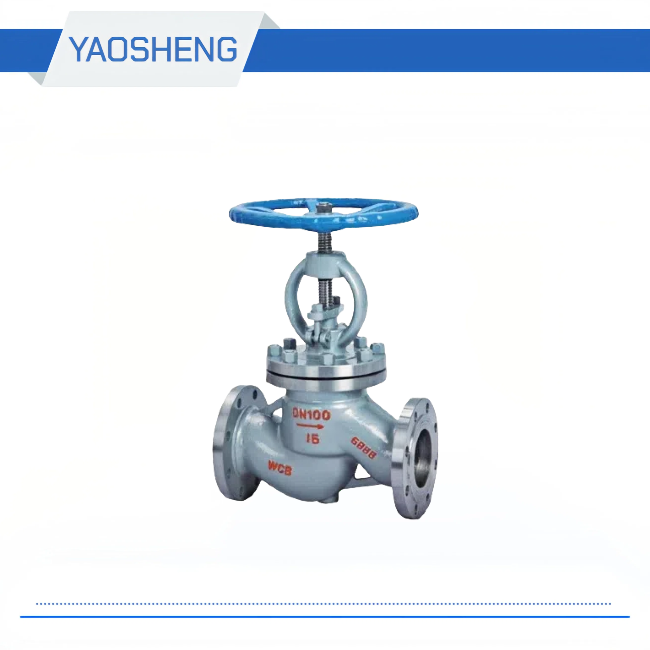

J41H/Y-16C/25/40/64/100 Cast Steel Globe Valve

Medium temperature: ≤425℃
Operation mode: manual/electric
Medium: water, oil, steam, etc
CAL: (- 1000
Pressure: 1.6-16.0 mpa
Body material: WCB
Connection: flange

Inquire Now Next Product

Product Details

Cast Steel Globe Valve Main parts and materials
Parts name		Material
Valve body Bonnet		WCB
Disc		WCB
Stem		WCB/2cr13
Yoke nut		Ductile iron

Cast Steel Globe Valve Function and specification
Type	Nominal pressure （mpa）	Testing pressure（mpa）		Suitable temperature	Suitable medium
		Strength (Water)	Enclose (Water)
J41/941H/Y-16C	1.6	2.40	1.80	—29—425℃	Water，Vapour，Oil
J41/941H/Y-25C	2.5	3.80	2.80
J41/941H/Y-40C	4.0	6.15	4.51
J41/941H/Y-64C	6.4	9.75	7.15

Cast Steel Globe Valve Outline and connecting measurement
Type	Nominal DN(mm）	Measurement（mm）
Type	Nominal DN(mm）	L	D	D1	D2	b-f	z-φd	H1
J41/941H/Y-16C	15	130	95	65	45	14-2	4*φ14	205
	20	150	105	75	55	14-2	4*φ14	211
	25	160	115	85	65	14-2	4*φ14	223
	32	180	135	100	78	16-2	4*φ18	250
	40	200	145	110	85	16-3	4*φ18	288
	50	230	160	125	100	16-3	4*φ18	321
	65	290	180	145	120	18-3	4*φ18	341
	80	310	195	160	135	20-3	8*φ18	385
	100	350	215	180	155	20-3	8*φ18	437
	125	400	245	210	185	22-3	8*φ18	471
	150	480	280	240	210	24-3	8*φ23	516
	200	600	335	295	265	26-3	12*φ23	610
J41/941H/Y-25C	15	130	95	65	45	16-2	4*φ14	207
	20	150	105	75	55	16-2	4*φ14	216
	25	160	115	85	65	16-2	4*φ14	234
	32	180	135	100	78	18-2	4*φ18	245
	40	200	145	110	85	18-3	4*φ18	284
	50	230	160	125	100	20-3	4*φ18	324
	65	290	180	145	120	22-3	8*φ18	371
	80	310	195	160	135	22-3	8*φ18	371
	100	350	230	190	160	24-3	8*φ23	417
	125	400	270	220	188	28-3	8*φ25	558
	150	480	300	250	218	30-3	8*φ25	611
	200	600	360	310	278	34-3	12*φ25	622
