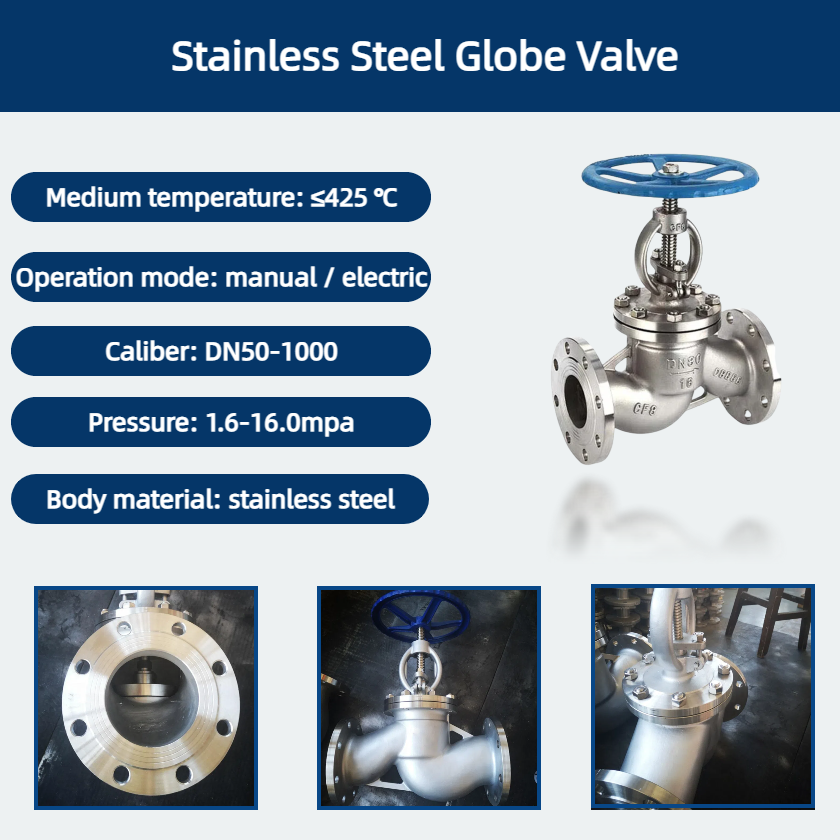

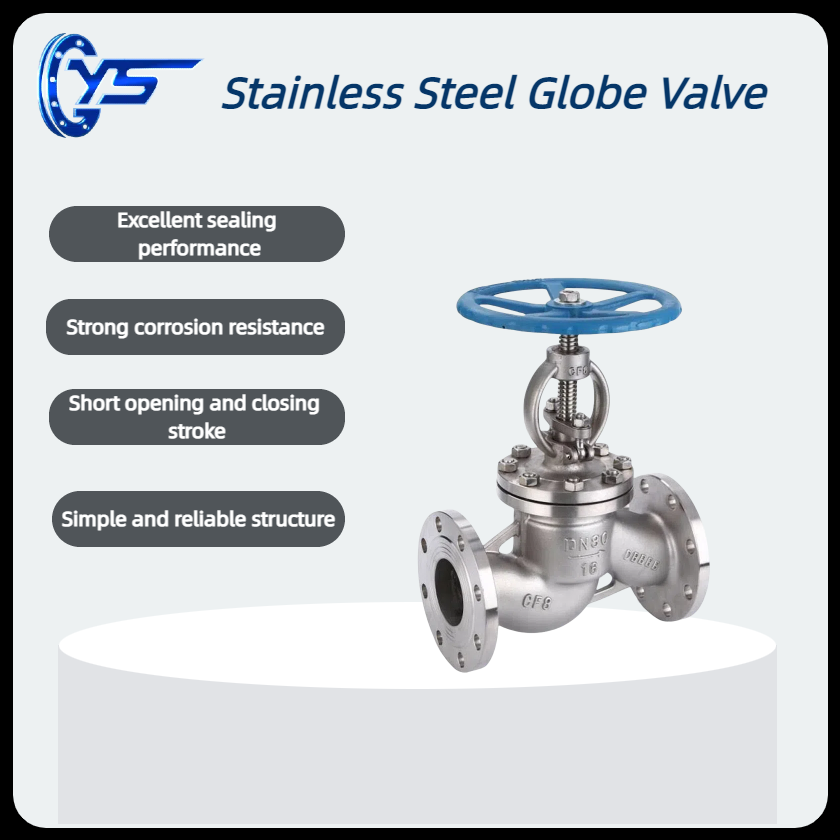

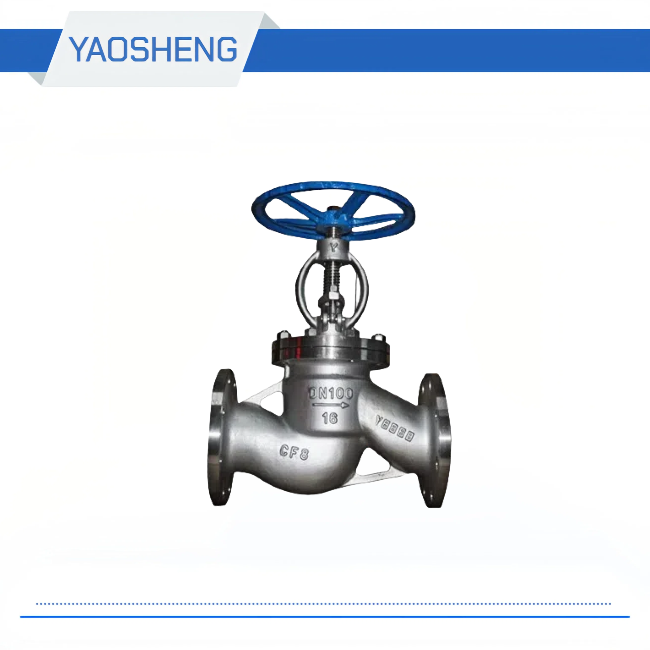

J41W-16P/25/40/64 Stainless Steel Globe Valve

Medium temperature: ≤425 ℃
Operation mode: manual / electric
Medium: water, oil, steam, corrosive medium, etc.
Caliber: DN50-1000
Pressure: 1.6-16.0mpa
Body material: stainless steel
Connection method: flange
Implementation Standard: National Standard

Inquire Now Next Product

Product Details

Stainless Steel Globe Valve Material of main parts
Part Name		material
Body / bonnet		CF8/CF3/CF8M/CF3M
Shutter		CF8/CF3/CF8M/CF3M
Valve stem		F304/F304L/F316/F316L
Stem nut		Ductile iron / brass

Stainless Steel Globe Valve J941/4W Performance specifications
model	Nominal pressure （LB）	test pressure（mpa）		proper temperature	Applicable medium
		strength	seal
J41/941H/Y-16C	1.6	2.40	1.80	—29—425℃	Water, steam, oil, corrosive media, etc.
J41/941H/Y-25C	2.5	3.80	2.80
J41/941H/Y-40C	4.0	6.15	4.51
J41/941H/Y-64C	6.4	9.75	7.15

Stainless Steel Globe Valve J941/41W Dimensions and connection dimensions
model	Nominal diameter （mm）	size（mm）
model	Nominal diameter （mm）	L	D	D1	D2	b-f	z-φd
J41/941W-16P	15	130	95	65	45	14-2	4*φ14
	20	150	105	75	55	14-2	4*φ14
	25	160	115	85	65	14-2	4*φ14
	32	180	135	100	78	16-2	4*φ18
	40	200	145	110	85	16-3	4*φ18
	50	230	160	125	100	16-3	4*φ18
	65	290	180	145	120	18-3	4*φ18
	80	310	195	160	135	20-3	8*φ18
	100	350	215	180	155	20-3	8*φ18
	125	400	245	210	185	22-3	8*φ18
	150	480	280	240	210	24-3	8*φ23
	200	600	335	295	265	26-3	12*φ23
J41/941W-25P	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	55	16-2	4*φ14
	25	160	115	85	65	16-2	4*φ14
	32	180	135	100	78	18-2	4*φ18
	40	200	145	110	85	18-3	4*φ18
	50	230	160	125	100	20-3	4*φ18
	65	290	180	145	120	22-3	8*φ18
	80	310	195	160	135	22-3	8*φ18
	100	350	230	190	160	24-3	8*φ23
	125	400	270	220	188	28-3	8*φ25
	150	480	300	250	218	30-3	8*φ25
	200	600	360	310	278	34-3	12*φ25
