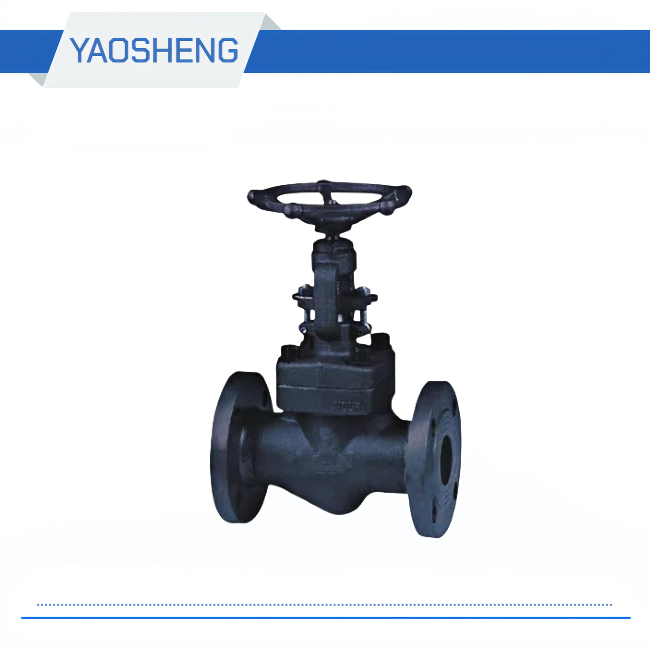

J41H / Y-25 / 40/64/100/160 forged steel flange globe valve

Medium temperature: ≤425 ℃

Medium: water, steam, oil, etc.

Caliber: DN15-DN50

Pressure: 1.6-25.0MPA

Body material: A105, LF2, F11, F22, F304, F316, F321, F51

Connection method: flange

Inquire Now Next Product

J41H / Y-25 / 40/64/100/160 forged steel flange globe valve Material of main parts
Part Name	material
Valve body	A105, LF2, F11, F22, F304, F316, F321, F51
gate	2CR13, A105, LF2, F11, F22, F304, F316, F321, F51

This valve is suitable for all kinds of pipelines that are fully open and fully closed, not for throttling.

J41H / Y-25 / 40/64/100/160 forged steel flange globe valve

Forged steel flange globe valve J41H / Y external dimensions and connection dimensions
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	A	B	C	T	n-φ
J41H-16C / 25/40	15	130	45	65	95	16	4 * φ14
	20	150	58	75	105	18	4 * φ14
	25	160	68	85	115	18	4 * φ14
	32	180	78	100	140	18	4 * φ18
	40	200	88	110	150	18	4 * φ18
	50	230	102	125	165	20	4 * φ18
J41H-63	15	165	45	75	105	20	4 * φ14
	20	190	58	90	130	twenty two	4 * φ18
	25	216	68	100	140	twenty four	4 * φ18
	32	230	78	110	155	26	4 * φ22
	40	241	88	125	170	28	4 * φ22
	50	292	102	135	180	28	4 * φ22
J41H-100	15	165	45	75	105	20	4 * φ14
	20	190	58	90	130	twenty two	4 * φ18
	25	216	68	100	140	twenty four	4 * φ18
	32	230	78	110	155	26	4 * φ22
	40	241	88	125	170	28	4 * φ22
	50	292	102	145	195	30	4 * φ26
J41H-160	15	170	55	75	105	20	4 * φ14
	20	190	62	90	130	twenty four	4 * φ18
	25	210	72	100	140	twenty four	4 * φ18
	32	230	85	115	155	28	4 * φ22
	40	260	92	125	170	28	4 * φ22
	50	300	132	165	195	30	4 * φ26
