Medium: sea water, fresh water, oil, fuel oil, steam
Operation method: manual
Caliber: DN50-300mm
Pressure: 10K
Body material: gray cast iron
Connection method: flange

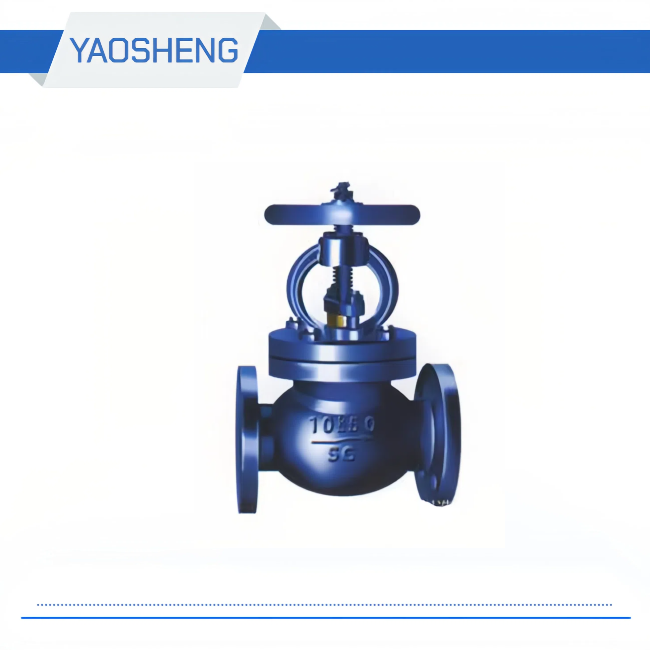

| JIS Marine Straight Through Globe Valve Material of main parts | ||
| Part Name | material | |
| Body / bonnet | Cast steel | |
| Stem nut | brass | |
| Valve seat | stainless steel | |
| Valve stem | stainless steel | |
| Dimensions and Connection Dimensions of JIS Marine Straight Through Globe Valve | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | b | n | nφTh | ||
| 10K | 50 | 220 | 155 | 120 | 16 | 4 | 19 |
| 65 | 270 | 175 | 140 | 18 | 4 | 19 | |
| 80 | 300 | 185 | 150 | 18 | 8 | 19 | |
| 100 | 350 | 210 | 175 | 18 | 8 | 19 | |
| 125 | 420 | 250 | 210 | 20 | 8 | twenty three | |
| 150 | 490 | 280 | 240 | twenty two | 8 | twenty three | |
| 200 | 570 | 330 | 290 | twenty two | 12 | twenty three | |
| 250 | 740 | 400 | 355 | twenty four | 12 | 25 | |
| 300 | 840 | 445 | 400 | twenty four | 12 | 25 | |
