Working environment and parameters:
Power supply: conventional, three-phase 380V (50Hz);
ambient temperature: -20 ~ + 60 ℃ (special order -40 ~ + 80 ℃);
protection level: IP55 (special order IP65, IP67);
working : 10 minutes (30 minutes for special order).
Overview:

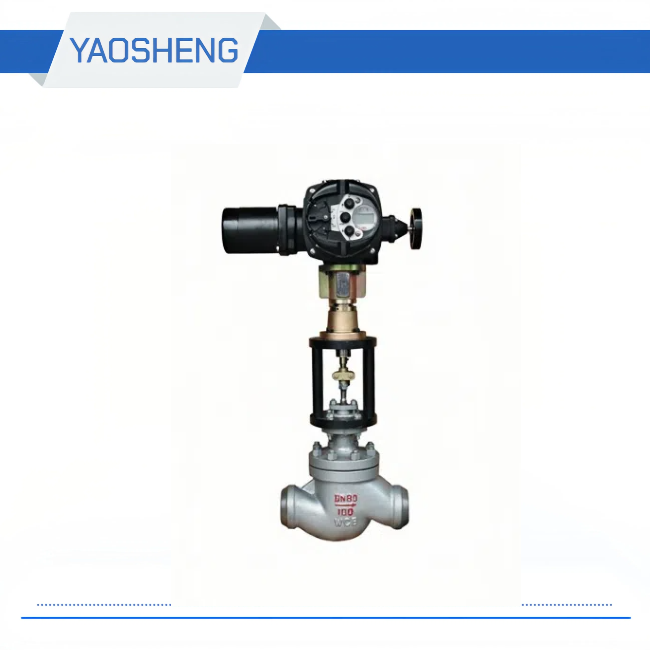

Z-type electrical equipment is suitable for gate valves, globe valves, diaphragm valves, plunger valves, throttle valves, water gates, etc. Can be used for bright stem valves and dark stem valves.
| classification: | ||||||
| Multi-turn electric device is divided by protection type: | Outdoor and flameproof; | |||||
| Divided by control method: | Normal type, integral type and integral adjustment type | |||||
| Divided by connection form: | Torque type, power station type and thrust type. | |||||
| Model specifications and main performance parameters | ||||||||
| Model specifications | Nominal torque | Nominal thrust | Maximum stem diameter (mm) | Maximum revolution | Manual speed ratio | Output speed | Motor Power | reference weight |
| (Nm) | (KN) | Number (circle) | (R / mi n) | (KW) | (Kg) | |||
| Z5 | 50 | 20 | 28 | 60 | 1:01 | 12 | 0.12 | 28 |
| Z10 | 100 | 40 | 28 | 60 | 1:01 | 24/36 | 0.25 / 0.37 | 45 |
| Z15 | 150 | 24/36 | 0.37 / 0.55 | 50 | ||||
| Z20 | 200 | 100 | 40 | 60 | 1:01 | 18/24 | 0.37 / 0.55 | 55 |
| Z30 | 300 | 18/24 | 0.55 / 0.75 | 58 | ||||
| Z45 | 450 | 150 | 48 | 120 | 1:01 | 24/36 | 1.1 / 1.5 | 110 |
| Z60 | 600 | (20: 1) | 24/36 | 1.5 / 2.2 | 120 | |||
| Z90 | 900 | 200 | 60 | 120 | 1:01 | 24/36 | 2.2 / 3 | 139 |
| Z120 | 1200 | (25: 1) | 24/36 | 2020/3 / 4Wednesday | 142 | |||
| Z180 | 1800 | 325 | 70 | 150 | (22.5: 1) | 18/24 | 4 / 5.5 | 250 |
| Z250 | 2500 | 18/24 | 5.5 / 7.5 | 255 | ||||
| Z350 | 3500 | 700 | 80 | 150 | 20:01 | 18/24 | 7.5 / 10 | 330 |
| Z500 | 5000 | 18/24 | 2020/10 / 15Thursday | 350 | ||||
| Shape and connection size | |||||||||||
| model | H | H1 | L1 | L2 | L3 | F | F1 | F2 | F3 | F4 | ΦD |
| Z5 | 271 | 96 | 158 | 226 | 249 | 158 | 259 | 310 | 316 | ||
| Z10 ~ Z30 | 316 | 130 | 200 | 238 | 295 | 200 | 255 | 317 | 349 | 374 | 400 |
| Z45 / Z60 | 415 | 195 | 277 | 277 | 394 | 230 | 275 | 391 | 369 | 394 | 460 |
| Z90 / Z120 | 453 | 195 | 281 | 281 | 412 | 278 | 310 | 426 | 404 | 429 | 556 |
| Z180 / Z250 | 585 | 250 | 320 | 320 | 474 | 295 | 360 | 476 | 455 | 476 | 320 |
| Z350 / Z500 | 717 | 280 | 399 | 399 | 1076 | 433 | 417 | 442 | 417 | 542 | 565 |
