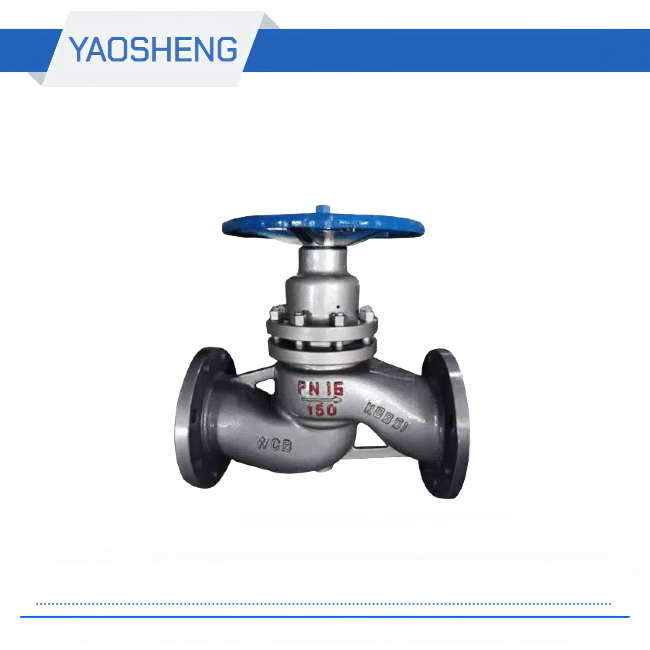

U41S-16/25/40C、P、R Plunger Valve

Medium temperature: ≤250 ℃
Operation method: manual
Medium: water, steam, oil, ammonia, copper acetate ammonia solution and acid medium
Caliber: DN15-200
Pressure: 1.6-4.0mpa
Body material: carbon steel, stainless steel
Connection method: flange
Implementation Standard: National Standard

Inquire Now Next Product

Product Details

U41S-16/25/40C、P、R Plunger Valve Material of main parts
Part name		Material
Valve body		Carbon steel / stainless steel
cap		Carbon steel / stainless steel
Valve stem		2CR13/1CR18NI9TK
Plunger		ZG1CR18NI9TI

U41S-16/25/40C、P、R Plunger Valve Performance specifications
model	Nominal pressure （LB）	test pressure（mpa）		proper temperature	Applicable medium
		strength	seal
U41S-16	1.6	2.40	1.76	—29—250℃	Water, steam, oil, ammonia, copper acetate ammonia solution and acid medium
U41S-25	2.5	3.75	2.75

U41S-16/25/40C、P、R Plunger Valve Dimensions and connection dimensions
model	Nominal diameter （mm）	size（mm）
model	Nominal diameter （mm）	L	D	D1	D2	b-f	z-φd
U41S-16	15	130	95	65	45	14-2	4*φ14
	20	150	105	75	55	16-2	4*φ14
	25	160	115	85	65	16-2	4*φ14
	32	180	135	100	78	18-2	4*φ18
	40	200	145	110	85	18-3	4*φ18
	50	230	160	125	100	20-3	4*φ18
	65	290	180	145	120	20-3	4*φ18
	80	310	195	160	135	22-3	8*φ18
	100	350	215	180	155	24-3	8*φ18
	125	400	245	210	185	26-3	8*φ18
	150	480	280	240	210	28-3	8*φ23
	200	600	335	295	265	30-3	12*φ23
U41S-25	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	55	16-2	4*φ14
	25	160	115	85	65	16-2	4*φ14
	32	180	135	100	78	18-2	4*φ18
	40	200	145	110	85	18-3	4*φ18
	50	230	160	125	100	20-3	4*φ18
	65	290	180	145	120	22-3	8*φ18
	80	310	195	160	135	22-3	8*φ18
	100	350	230	190	160	24-3	8*φ23
	125	400	270	220	188	28-3	8*φ25
	150	480	300	250	218	30-3	8*φ25
	200	600	360	310	278	34-3	12*φ25
