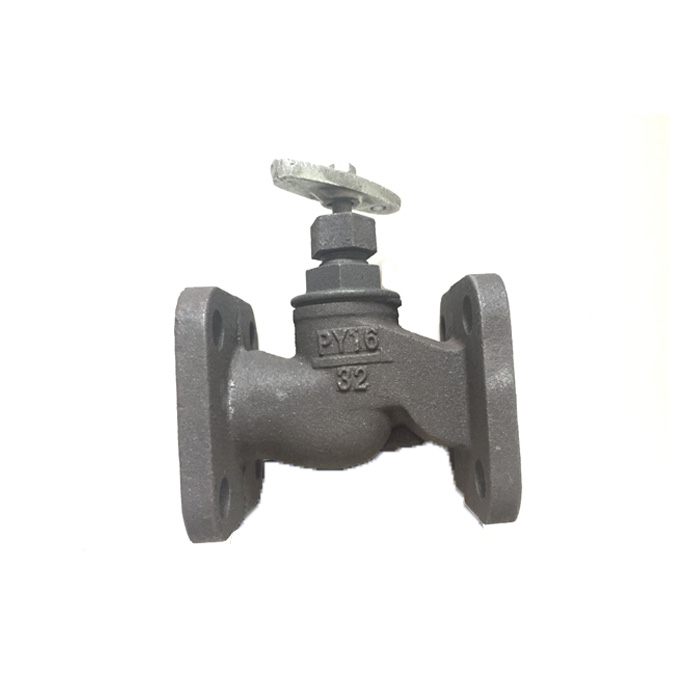

Medium temperature: ≤200 ℃
Operation method: manual
Medium: water, steam
Caliber: DN25-50
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: square flange
Square Flange Globe Valve Main parts and materials | |||
Parts name | Material | ||
Valve body Bonnet | Grey iron | ||
Disc | Grey iron | ||
Stem | Carbon steel |
Square Flange Globe Valve Function and specification | |||||||||
Type | Nominal pressure (mpa) | Testing pressure(mpa) | Suitable temperature | Suitable medium | |||||
Strength (Water) | Enclose (Water) | ||||||||
J41T-16 | 1.6 | 2.40 | 1.80 | ≤200℃ | water, steam |

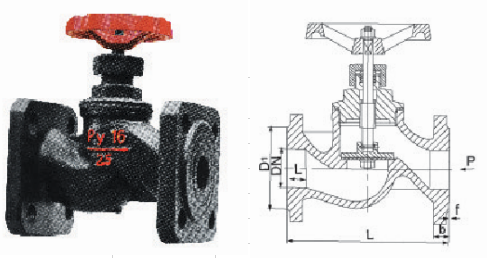

Square Flange Globe Valve Outline and connecting measurement | |||||||||
Type | Nominal DN(mm) | Measurement(mm) | |||||||
L | L1 | b | f | D1 | D2 | 4xφ14 | |||
J41T-16 | 25 | 120 | 16 | 14 | 2 | φ85 | φ68 | 4*φ14 | |
32 | 140 | 17 | 16 | 2 | φ100 | φ78 | 4*φ18 | ||
40 | 170 | 21 | 16 | 2 | φ110 | φ88 | 4*φ18 | ||
50 | 200 | 22 | 16 | 3 | φ125 | φ102 | 4*φ18 |
Tips:
1.Compact structure, reasonable design, good valve rigidity, smooth passage.
2.The use of flexible graphite packing, reliable sealing, light and flexible operation
Applications:
Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.
Product Advantages:
1.We have Sand or Precision casting technology,So we can as your drawing design and production.
2.Customers' logos are available cast on the valve body.
3. All our casting with tempering procedure before Processing.
4. Use the CNC lathe during whole process.
5. The disc sealing surface use plasma welding machine welding.
6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.
7.The kind valve we usually use Bags to package, We also can according to specific customer's requests.
