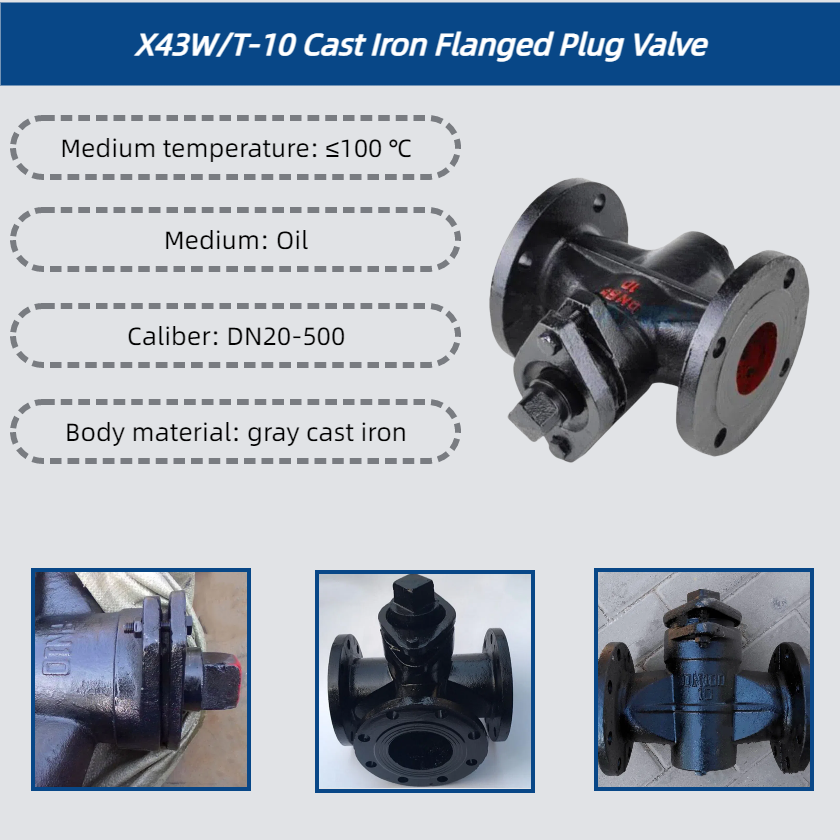

Medium temperature: ≤100 ℃
Medium: Oil
Caliber: DN20-500
Pressure: 1.0mpa
Body material: gray cast iron
Connection method: flange

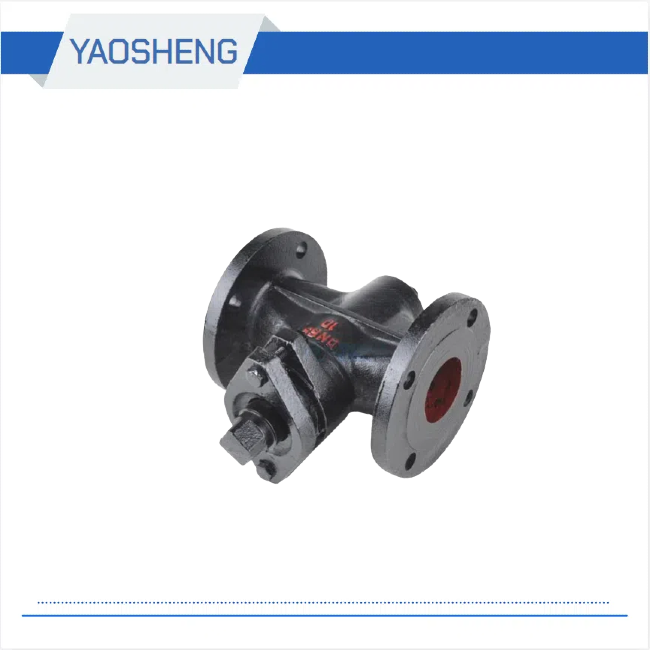

| X43W/T-10 Cast Iron Flanged Plug Valve Material of main parts | |||
| Part Name | material | ||
| Valve body | grey cast iron | ||
| Stopcock | grey cast iron | ||
| filler | Graphite, asbestos packing | ||

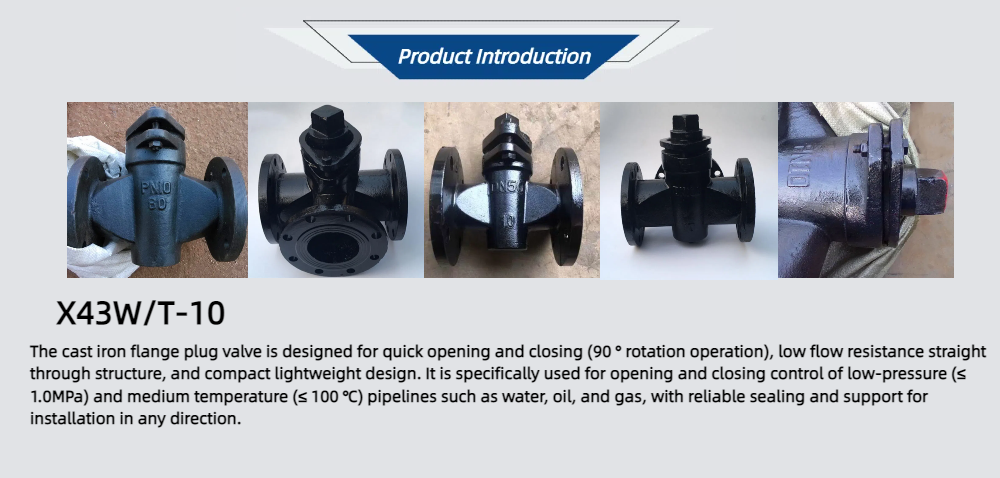

Application: This valve is used to open and close the pipe.
| Plug valve X43W performance specifications | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | Sealed (water) | ||||||
| H43W-10 | 1.00 | 1.50 | 1.10 | ≤100 ℃ | Oil | ||
| Plug valve X43W overall dimensions and connection dimensions | |||||
| model | Nominal diameter (mm) | Size (mm) | |||
| L | D | D1 | Z-φd | ||
| X43W-10 | 25 | 110 | 115 | 85 | 4-14 |
| 32 | 130 | 130 | 100 | 4-18 | |
| 40 | 153 | 145 | 110 | 4-18 | |
| 50 | 170 | 160 | 125 | 4-18 | |
| 65 | 220 | 180 | 145 | 4-18 | |
| 80 | 250 | 195 | 160 | 4-18 | |
| 100 | 300 | 215 | 180 | 8-18 | |
| 125 | 350 | 246 | 210 | 8-18 | |
| 150 | 400 | 280 | 240 | 8-23 | |
| 200 | 445 | 335 | 295 | 8-23 | |
| 250 | 535 | 390 | 350 | 12-23 | |
