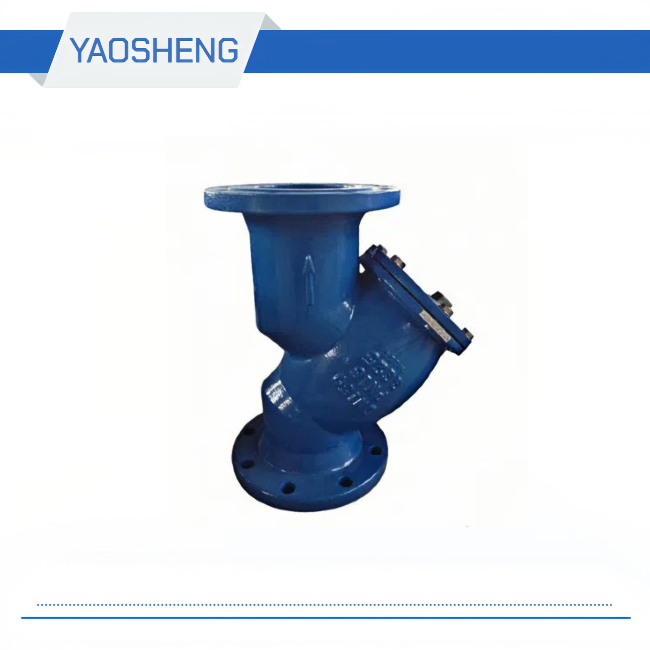

Medium temperature: ≤100 ℃
Medium: water
Caliber: DN50-300mm
Pressure: 1.0-1.6mpa
Body material: ductile iron, gray iron
Connection method: flange
| BS Strainer Material of main parts | ||
| Part Name | material | |
| Body / bonnet | Ductile iron, gray iron | |
| Filter | stainless steel | |
| British Standard Filter Performance Specifications | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | Sealed (water) | ||||||
| British Standard Filter | 1.00 | 1.50 | 1.10 | ≤100 ℃ | water | ||
| British Standard Filter | 1.60 | 2.40 | 1.76 | ≤100 ℃ | water | ||
| British standard filter dimensions and connection dimensions | ||||||||
| model | Nominal diameter (mm) | Size (mm) | ||||||
| L | D | D1 | D2 | b | n-φd | |||
| PN10 | PN16 | |||||||
| British Standard Filter | 50 | 220 | 165 | 125 | 102 | 20 | 4 * φ18 | |
| 65 | 270 | 185 | 145 | 122 | 20 | 4 * φ18 | ||
| 80 | 290 | 200 | 160 | 138 | twenty two | 8 * φ18 | ||
| 100 | 350 | 220 | 180 | 158 | twenty four | 8 * φ18 | ||
| 125 | 390 | 250 | 210 | 184 | 26 | 8 * φ18 | ||
| 150 | 440 | 285 | 240 | 212 | 26 | 8 * φ22 | ||
| 200 | 540 | 340 | 295 | 268 | 30 | 8 * φ22 | ||
| 250 | 660 | 405 | 350 | 320 | 32 | 12 * φ22 | ||
| 300 | 720 | 460 | 400 | 372 | 32 | 12 * φ22 | ||
