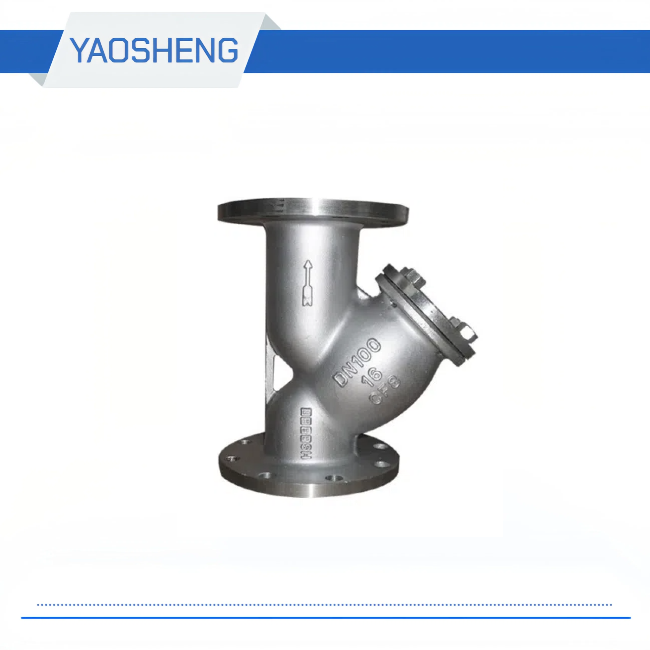

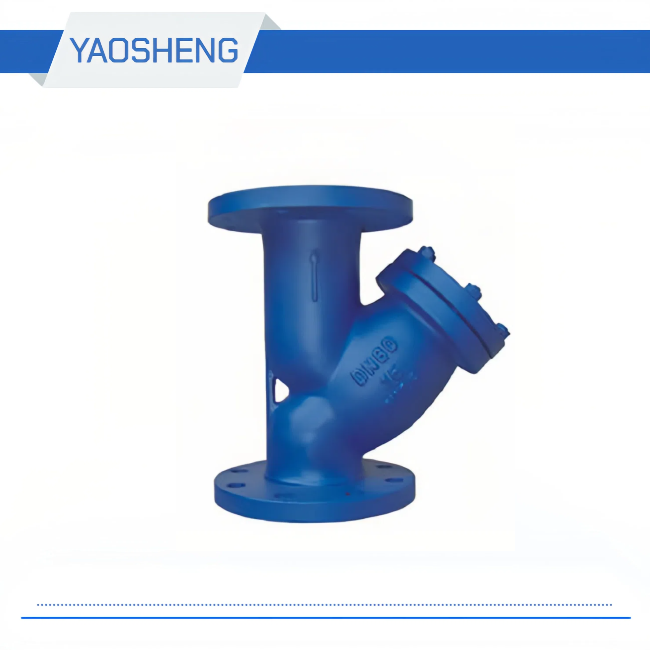

GL41H-16/25/40 DIN Strainer

Medium temperature: —29-425 ° C
Medium: water, steam, oil, etc.
Caliber: DN15-350mm
Pressure: 1.6-4.0mpa
Body material: GS-C25 1.4301 1.4401
Connection method: flange
Structure length: DIN3202
Flange connection size: DIN2543-2546
Design standard: DIN3356

Inquire Now Next Product

Product Details

DIN Strainer main parts
Parts Name		material
Body / bonnet		GS-C25 1.4301 1.4401
Filter		1.4301 1.4401
Stud bolt		ASTM A193-B7、A193-B8
Metal pad		Asbestos + stainless steel

Application: hot oil system, steam system, hot and cold water system, natural gas supply system, etc.

DIN Strainer

DIN Strainer Performance specifications
Model	Nominal Pressure （mpa）	Test Pressure（mpa）（water）		Proper Temperature	Applicable Medium
		Strength	Seal
GL41H-16/25/40	1.6/2.5/4.0	1.5*PN	1.1*PN	—29-425℃	Water，Vapour，Oil

DIN Strainer Dimensions and connection dimensions
Model	Nominal Diameter （mm）	size（mm）
Model	Nominal Diameter （mm）	L	D	D1	D2	b-f	z-φd
GL41H-16	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	58	18-2	4*φ14
	25	160	115	85	68	18-2	4*φ14
	32	180	140	100	78	18-2	4*φ18
	40	200	150	110	88	18-3	4*φ18
	50	230	165	125	102	20-3	4*φ18
	65	290	185	145	122	20-3	4*φ18
	80	310	200	160	138	20-3	8*φ18
	100	350	220	180	158	20-3	8*φ18
	125	400	250	210	188	22-3	8*φ18
	150	480	285	240	212	22-3	8*φ22
	200	600	340	295	268	24-3	12*φ22
	250	730	405	355	320	26-3	12*φ26
	300	850	460	410	378	28-4	12*φ26
	350	980	520	470	438	30-3	16*φ22
GL41H-25	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	58	18-2	4*φ14
	25	160	115	85	68	18-2	4*φ14
	32	180	140	100	78	18-2	4*φ18
	40	200	150	110	88	18-3	4*φ18
	50	230	165	125	102	20-3	4*φ18
	65	290	185	145	122	22-3	8*φ18
	80	310	200	160	138	24-3	8*φ18
	100	350	235	190	162	24-3	8*φ22
	125	400	270	220	188	26-3	8*φ26
	150	480	300	250	218	28-3	8*φ26
	200	600	360	310	278	30-3	12*φ26
	250	730	425	370	335	32-3	12*φ30
	300	850	485	430	395	34-4	16*φ30
	350	980	555	490	450	38-3	16*φ33
GL41H-40	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	58	18-2	4*φ14
	25	160	115	85	68	18-2	4*φ14
	32	180	140	100	78	18-2	4*φ18
	40	200	150	110	88	18-3	4*φ18
	50	230	165	125	102	20-3	4*φ18
	65	290	185	145	122	22-3	8*φ18
	80	310	200	160	138	24-3	8*φ18
	100	350	235	190	162	24-3	8*φ22
	125	400	270	220	188	26-3	8*φ26
	150	480	300	250	218	28-3	8*φ26
	200	600	375	320	285	34-3	12*φ30
	250	730	450	385	345	38-3	12*φ33
	300	850	515	450	410	42-4	16*φ33
	350	980	580	510	465	46-3	16*φ36
