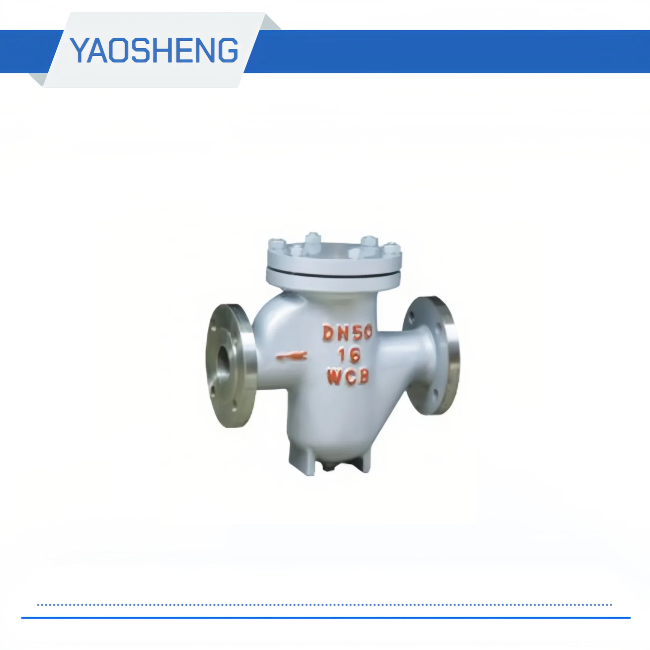

DIN U Type Strainer

Medium temperature: ≤350 ℃
Medium: water, oil, air, steam
Caliber: DN10-100mm
Type: UG-A / UG-B
Body material: carbon steel, stainless steel
Connection method: flange

Inquire Now Next Product

Product Details

DIN U Type Strainer Material of main parts
Part Name	material
Body / bonnet	Carbon steel, stainless steel
Filter cover	Carbon steel, stainless steel
Filter mesh	stainless steel
Gasket	Flexible graphite

German standard U-shaped filter

DIN U Type Strainer performance specifications
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
PN16	1.60	2.40	1.76	≤350 ℃	Water, oil, air, steam
PN25	2.50	3.75	2.75

DIN U Type Strainer dimensions and connection dimensions
model	Nominal diameter (mm)	Dimensions
		A	L	H
UG-A	10	150	80	125
	15	150	80	125
	20	180	100	153
	25	180	100	153
	40	200	155	304
	50	300	155	340
	65	340	220	380
	80	400	250	420
	100	500	295	502
	150	600	335	650
	200	786	395	770
model	Nominal diameter (mm)	Dimensions
		A	H1	H2
UG-B	15	270	90	145
	20	270	90	145
	25	270	90	145
	32	320	125	175
	40	320	125	175
	50	320	125	175
	65	430	140	220
	80	430	140	220
	100	430	140	220
	125	460	160	235
	150	460	170	235
	200	460	190	235
